tcVISION: Enterprise ETL and Real-Time Data Replication Through Change Data Capture

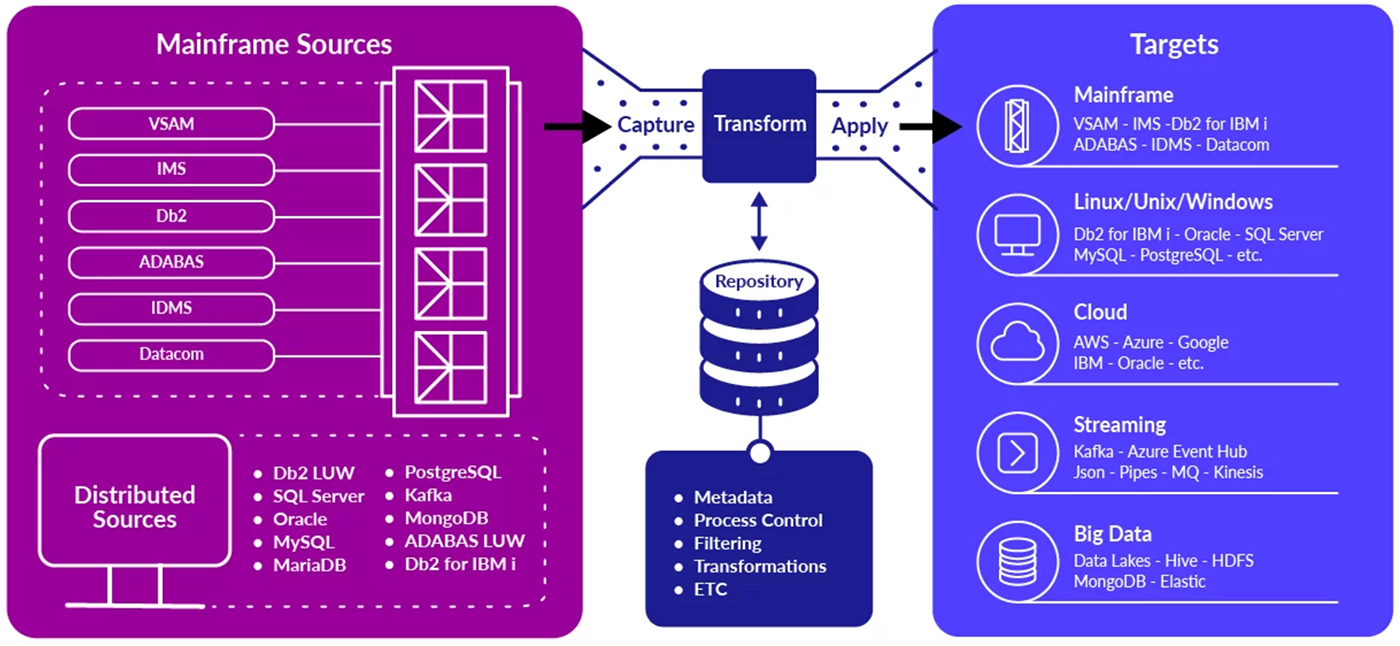

tcVISION supports a vast array of integration scenarios throughout the enterprise, providing easy and fast data migration for mainframe application modernization projects and enabling bi-directional data replication between mainframe, Cloud, Linux, Unix, and Windows platforms. This innovative technology offers comprehensive abilities to identify and capture changes occurring in mainframe and relational databases, then publish the required information to an impressive variety of targets, both on-premise and Cloud-based.

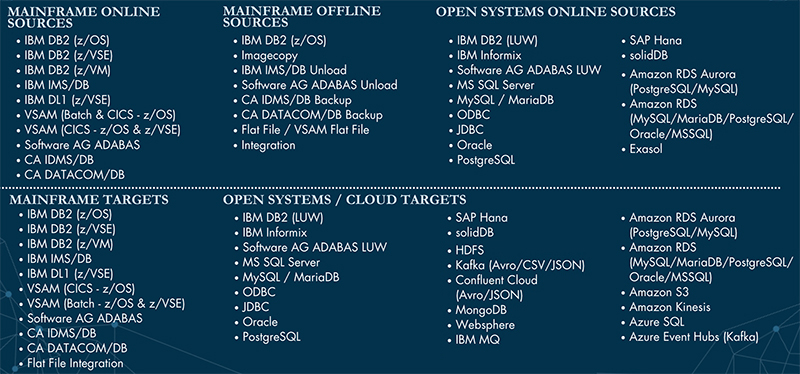

Environments Supported by tcVISION...

Part I: Mainframe Online Sources1

Database / Environment Bulk Source CDC Source2 Agentless3

IBM DB2 (zOS)

X

X

X

IBM DB2 (zVSE)

X

X



IBM DB2 (zVM)

X

X



IBM IMS/DB

X

X4



IBM DL1 (zVSE)

X

X



VSAM (Batch & CICS - zOS)

X

X5



VSAM (CICS - zOS & zVSE)

X

X



Software AG ADABAS

X

X6



CA IDMS/DB

X

X7



CA DATACOM/DB

X

X



Flat File Integration

X







Part II: Mainframe Offline Sources1

Dataset / File Mainframe Readable Offline Processable

IBM DB2 (zOS) Imagecopy

X

X

IBM IMS/DB Unload

X

X

Software AG ADABAS Unload

X

X

CA IDMS/DB Backup

X

X8

CA DATACOM/DB Backup

X

X

Flat File / VSAM

X

X


1 These Sources are not offered through our AWS Marketplace package and must be licensed separately.

2 Real-time Change Data Capture

3 Agentless processable - no tcVISION Agent is required at z/OS

4 tcVISION IMS logreader is available

5 Through VSAM Logstreams

6 tcVISION PLOG reader is available

7 tcVISION IDMS logreader is available

8 Presspack compression only processable with reader on mainframe

Part III: Open Systems Online Sources

Database / Environment Bulk Source CDC Source

IBM DB2 (LUW)

X

X9

IBM Informix

X

X

Software AG ADABAS LUW

X

X

MS SQL Server

X

X9

MySQL / MariaDB

X

X9

ODBC

X



JDBC

X



Oracle

X

X9

PostgreSQL

X

X10

SAP Hana

X



Solid DB

X



Teradata

X



AWS RDS Aurora (MySQL API compatibility)

X

X

AWS RDS MySQL/MariaDB

X

X

AWS RDS Oracle

X

X

AWS RDS SQL Server

X

X

Exasol

X




9 Agentless processable - no tcVISION software is required at the database node

10 Agentless processable - decoding library required at the database node


Part IV: Open Systems Targets

Database / Environment Database Direct API Database Direct Loader Interface Agentless11

IBM DB2 (LUW)

X

X

X

IBM Informix

X



X

Software AG ADABAS LUW

X

X



MS SQL Server

X

X

X

MySQL / MariaDB

X

X

X

ODBC

X



X

JDBC

X



X

Oracle

X

X

X

PostgreSQL

X

X

X

SAP Hana





X

Solid DB

X



X

Teradata

X

X

X

HDFS

X



X

Avro to Kafka

X



X

CSV to Kafka

X



X

Json to Kafka

X



X

MongoDB

X



X

Websphere MQ

X



X

XML

X



X

Amazon RDS Aurora (MySQL API comp.)

X

X

X

Amazon RDS Aurora (PostgreSQL API comp.)

X

X

X

Amazon RDS PostgreSQL

X

X

X

Amazon RDS MySQL/MariaDB

X

X

X

Amazon RDS Oracle

X

X

X

Amazon RDS SQL Server

X

X

X

Amazon S3 via CSV and AWS CLI

X



X

Exasol

X



X


11 Agentless processable - no tcVISION software is required at the database node


Part V: Mainframe Targets12

Database / Environment Direct Loader Agentless13

IBM DB2 (zOS)

X

X

X

IBM DB2 (zVSE)

X

X

X

IBM DB2 (zVM)

X



X

IBM IMS/DB

X14





IBM DL1 (zVSE)

X





VSAM (CICS - zOS)

X



X15

VSAM (Batch - zOS & zVSE)

X





Software AG ADABAS

X





CA IDMS/DB

X





CA DATACOM/DB

X





Flat File Integration

X





12 These Sources are not offered through our AWS Marketplace package and must be licensed separately.

13 Agentless processable - no tcVISION Agent is required at z/OS

14 External job (BMP) or via DBCTL

15 CICS listener via CSKL and VSAM writer (part of tcVISION) required





Read More: tcVISION - Replication to Big Data Targets, Technology, Benefits, and Case Studies

Read More: tcVISION - Mainframe-to-Amazon Web Services (AWS) Data Replication

View tcVISION Instructional Videos



Supported Environments

IBM-Mainframe:
IBM z/OS, VSE

Target database can reside on a workstation, AWS Cloud, or on an open systems or Windows server (e.g., Oracle, SQL Server, Sybase, etc.)--or another mainframe database (e.g., DL/1 -> DB2).

Transfer to the target system: SQL, HTML, XML or any user-specific format that can be accessed by an API
